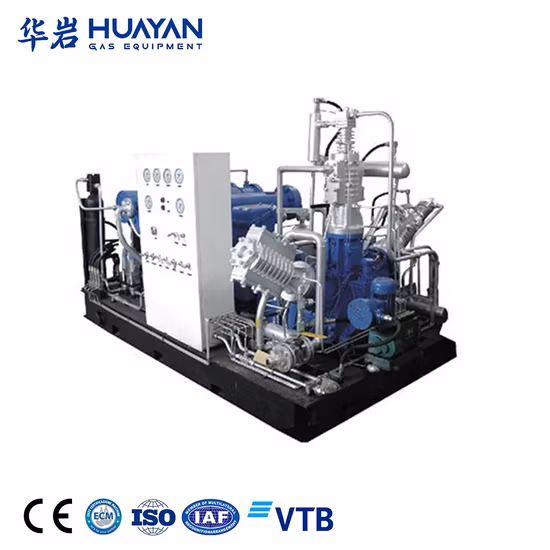

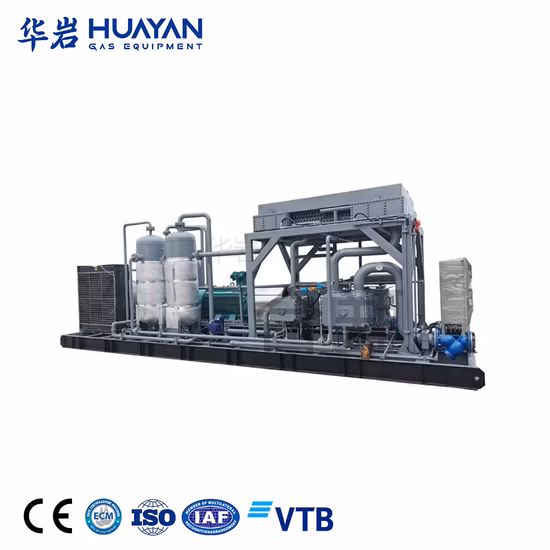

300bar High Pressure Oil Free Medical Oxygen Compressor Booster
Overview Oil Free Oxygen Nitrogen Argon Helium Hydrogen Compressor Booster: Product Description ·Our factory produced ma
Send your inquiryDESCRIPTION
Basic Info
Model NO. | 1-1000Nm3/H |
Usage | Oxygen/Nitrogen/Argon/Helium/Hydrogen/CO2/Ozone... |
Purpose | Gas Supercharging |
Parts | Filling Manifold/Cylinder |
Application Fields | Chemical/Medical/Petroleum/Food/Energy&Mining ... |
Noise Level | Low |
Machine Size | Customized |
Condition | New |
Certification | RoHS, ISO, CE, CCC |
Technology | Oil-Free Puressureized |
Voltage/Frequency | Customizable |
Aftersales Service Provided | Free Spare Parts |
Transport Package | Wooden Box |
Specification | 1NM3/H-1000NM3/H |
Trademark | WOBO |
Origin | China |
HS Code | 8414809090 |
Production Capacity | 1000units/Per Month |
Product Description
Oil Free Oxygen Nitrogen Argon Helium Hydrogen Compressor Booster:Product Description
·Our factory produced many kinds of oil free compressor, inlcuding oil free oxygen compressor, oil free gas compressor, including air, nitrogen gas, hydrogen gas, natural gas, Argon gas, helium gas, Sf6 gas ects more than thirty kinds of gas medium,max pressure up to 40Mpa.
·Our oxygen compressor is total oil free, do not use any lubricate oil, and for the cylinder use stainless steel material, piston ring is self-lubricated material, all this guarantee oxygen is clean and no-pollution.
·Compressor can keep working do 24 hours heavy duty loading, this Oxygen compressor main use for hospital oxygen supplier center, to increase oxygen supply line pressure to the room, also can boost oxygen, and filling to the cylinder, such as 15Mpa, 20Mpa, also our oxygen booster can use in Industrial acetylene cutting, cutting steel scrap in steel factory, support boiler oxygen combustion recycle the cryogenic liquid oxygen tank vapor oxygen to the tank.
Product Parameters
Output Nm³/h | Rated Inlet Pressure Mpa | Rated Outlet Pressure Mpa | Rated Power KW | Volume Flow Of The Matched Oxygen Generator Nm³/h | Cooling Type |
3~5 | 0.3~0.7 | 1~20 | 4.0 | 3-5 | Wind |
8~12 | 0.3~0.7 | 1~20 | 5.5~7.5 | 8-12 | Wind |
15~16 | 0.3~0.7 | 1~20 | 11 | 15-16 | Wind |
20 | 0.3~0.7 | 1~20 | 15 | 20 | Wind |
24~25 | 0.3~0.7 | 1~20 | 15 | 24-25 | Wind |
30 | 0.3~0.7 | 1~20 | 15 | 30 | Water |
40 | 0.3~0.7 | 1~20 | 15 | 40 | Water |
50 | 0.3~0.7 | 1~20 | 18.5 | 50 | Water |
60~70 | 0.3~0.7 | 1~20 | 22 | 60-70 | Water |
80~90 | 0.3~0.7 | 1~20 | 15×2 | 80-90 | Water |
110~130 | 0.3~0.7 | 1~20 | 22×2 | 110-130 | Water |
150 | 0.3~0.7 | 1~20 | 22×2 | 150 | Water |
The inlet pressure of the oil-free oxygen booster can be between 0-1.0MPa, and the outlet pressure can reach up to 20Mpa. It is suitable for various output and can be customized according to the specific requirements of customers. |
Selection Guide
Selection principle of oil-free booster (Oxygen and nitrogen as examples)1. Working conditions: <1>Compressed medium; <2>Inlet pressure; <3>Exhaust pressure; <4>Exhaust volume (Sometimes referring to the production volume of oxygen generator and nitrogen generator)2. Determine the compressor model according to the working conditions3. Common sense description <1>Nm³/h is m³ of exhaust gas per hour under standard conditions; Nm³/min is m³ of exhaust gas per minute under standard conditions <2>1bar=0.1Mpa≈1kgf <3>The relationship between the flow rate in the pressure state and the flow rate in the standard state: the flow rate in the standard state = the flow rate in the pressure state × (fluid pressure + atmospheric pressure), the atmospheric pressure is usually 1 bar.
Product Applications
Product Advantages
1.Totally 100% oil free,no need oil2.Suitable for oxygen,hydrogen,nitrogen,helium,argon,cng and special gas3.No pollution ,keep same purity to inlet gas4.Reliable and top quality,comparable with usa rix brand.5.Top cost performance,low maintenance cost and easy to be operational, only need to be change piston ring6.4000 hours piston ring working life,1500-2000 hours working life for final stage ring7.Top brand motor and can be special pointed, like Simense brand
Product Show
Project Case
Related Products
-
10m3 30m3 Container Medical Gas Equipments Healthcare Portable Oxygen Generator Oxygen Generatoper with Cylinder Filling System
-
Best Selling China Liquid Oxygen Generator with Oxygen Gas Filling Station
-
Factory Supply Vpsa Oxygen Gas Generator Cryogenic Liquid Oxygen Production Line
-

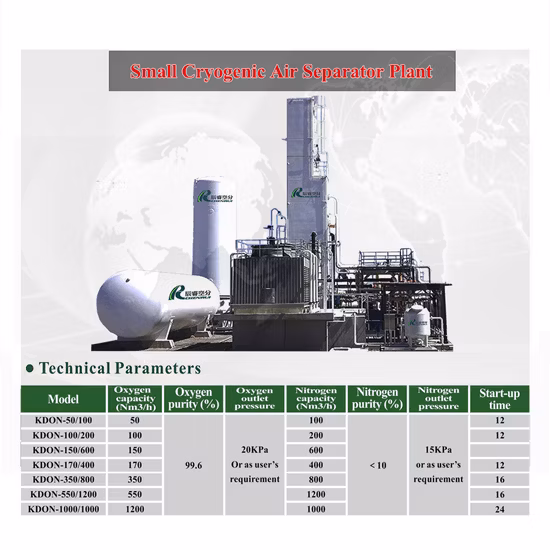

Psa EPC Air Separation Unit Medical Liquid Cryogenic Oxygen Gas High Purity Nitrogen Generator Industrial Production Plant 50%off
